Band pass filter 390 - 395 MHz
Selectivity > 30 dB at 380MHz and 400 MHz out of band
IL: < 1.5dB ; RL : >16dB
|
Some of our products....
| Products code | Description | Datasheet | |
|
2.38 GHz Bandpass Filter IL < 11 dB Attenuation > 30 dB @ 23400 MHz |
|
 |
|
| MW-F00392-CCT |
Bandpass Filters 390-395 MHz Bandwidth 5 MHz |
|
|
| MW-F02300-NPT |
Bandpass Filters 2180-2310 MHZ for telemetry |
|
|
|
MW-F01325-CCT
|
Bandpass Filters 900-1750 MHZ |
|
|
|
MW-F02000-3ASCCT |
Band pass filter 1500-2500 MHz
|
|
|
| MW02.65-6ASCCT |
Band pass filter
Narrow Band (10 MHz)& Low Loss (< 1 dB)
Tunable from 2.4 to 2.7 GHz.
|
|
|
|
MW01,27-4ASNNNT
|
Wide Bandpass filter + Low pass filter
2 to 3 GHz

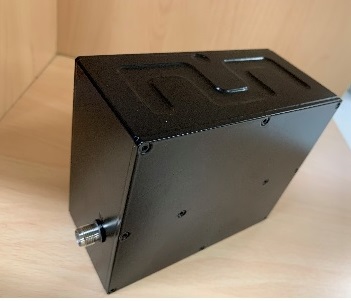

Both an indoor and an outdoor version are available
|
 |
|
| MW-F00625-CCT |
UHF Filter
Tunable in 400-850 MHz range
|
 |
|
|
8 GHz Bandpass Filters
5 Resonators
BW=10 MHz
IL < 3.6 dB
|
 |
|
|
|
|
8 GHz Bandpass Filters
3 Resonators
BW=10 MHz
IL < 1.5 dB
|
 |
|
For any specific request please send us your requirement at This email address is being protected from spambots. You need JavaScript enabled to view it.
